Corrugated Barrier Liners

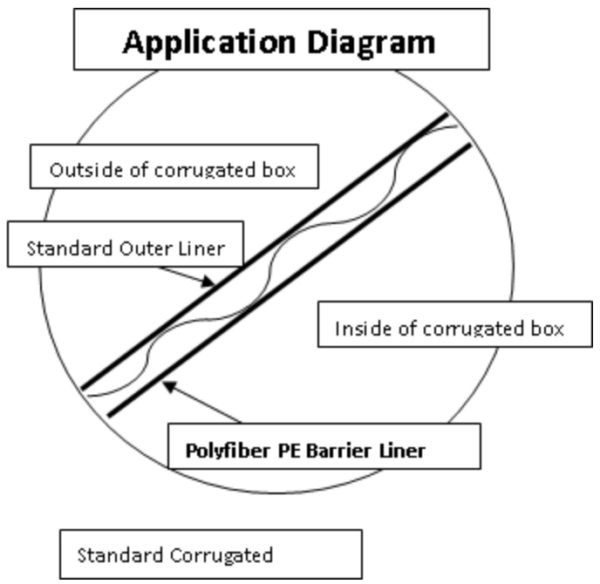

Corrugated Barrier Liners are designed for the corrugated box industry to be an internal and/or external liner in a corrugated structure.

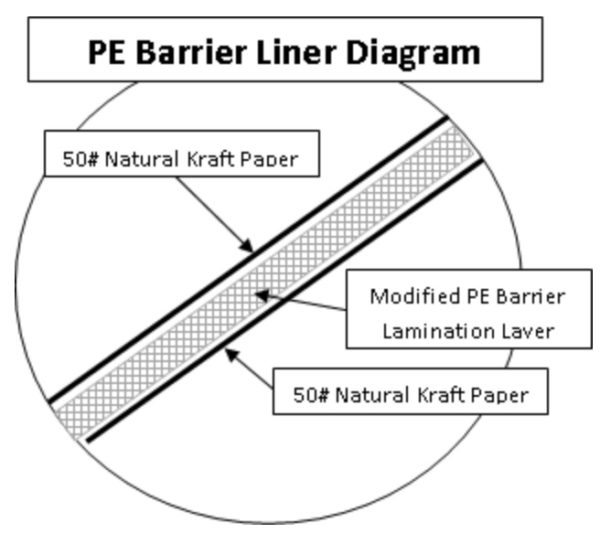

Two sheets of high grade Kraft paper or Kraft linerboard are laminated together with a modified blend of Polyethylene (PE), specially designed to withstand the rigors of the corrugating process.

The resulting corrugated product has an outstanding moisture vapor barrier and can be used in multiple end use packaging applications.


Get A Quote


    • Composition


      • Modified PE Blend
      • Various coating weights available
      • Resin is FDA, CONEG approved
    • Product Grades
      • PEB50 – lamination of 2-50# Natural Kraft Sheets
      • PEB26 – lamination of 2-26# Kraft Liner Board Sheets
    • sizes
      • Width Range – Up to 103” wide
      • Roll OD: 60” Standard, other sizes possible
    • Product Applications

      Moisture control is the primary objective for a PE Barrier Liner in a corrugated structure. The applications for moisture control in packaging are widespread and some examples include:

      Packaging the following:

      • Books
      • Fine Paper or Documents
      • Food
      • Electronics
      • Hydrophilic Materials (Water Absorbing)
      • Any product that needs added moisture protection as part of its packaging.
