Grade SW-40 – Woven Reinforced Kraft

Blue Shield Grade SW-40

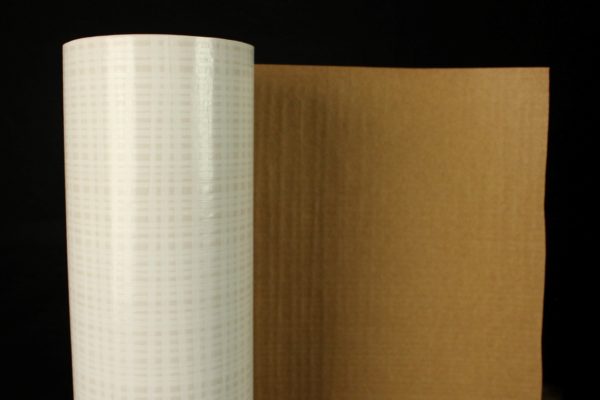

Blue Shield SW-40 is a poly-coated, woven, reinforced laminated paper.

Product Features

  • Oil, grease, and water resistant barrier
  • Exceptional tear and puncture resistance
  • High Level MVTR (Moisture Vapor Transfer Rate)
  • Superior forming characteristics, easily folded without cracking or barrier loss
  • Excellent lay flat
Clear
SKU: N/A Category:

Description

  • Product Literature
     TDS   SDS
  • Composition
    Grade SW-40 is combination of a 40 lb/ream natural kraft sheet, laminated to 0.7 oz/yd2 HDPE woven reinforcement by 1.5 mils of white, UV stabilized LDPE.Blue Shield SW-40 is offered in the following widths and lengths:

    • Widths: 24”, 36”, 48”, 60”, 72”, 96”
    • Length: 300’ and 600’

    Custom sizing is available, contact Holland for more information.

  • Product Applications
    Blue Shield’s Grade SW-40 is Holland’s most tear resistant paper.  Featuring a woven mesh reinforcement, SW-40 is designed for the most demanding applications which require superior durability and toughness.
  • POLY BARRIER

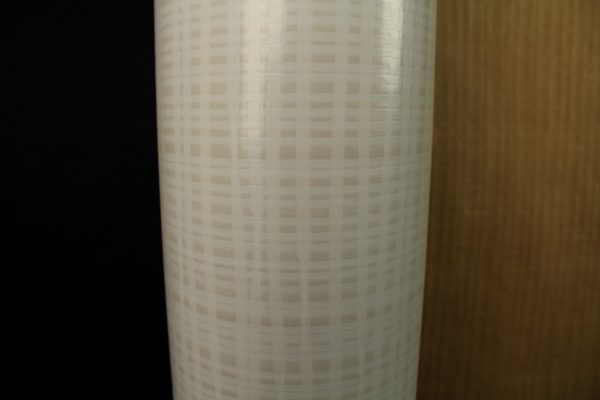

    Unlike many other woven and paper laminations, Grade SW-40 features a coating of white, UV resistant polyethylene over the top surface of the woven fabric.  This top coating enhances the product’s barrier and durability properties.
  • PAPER BACKED

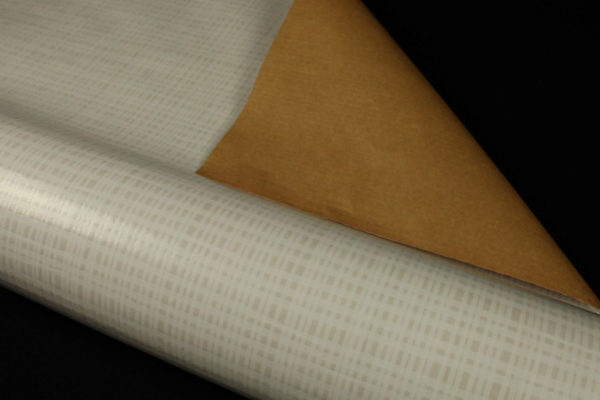

    SW-40 has a paper backing which allows the product to absorb moisture, oil and grease. Also the paper surface is easy to write on which can be a significant advantage in industrial applications.
  • APPLICATIONS
    • Metal Packaging
    • Industrial Packaging
    • Lumber Wrap

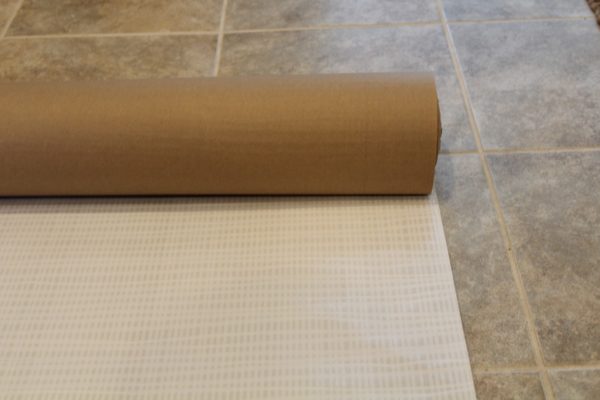

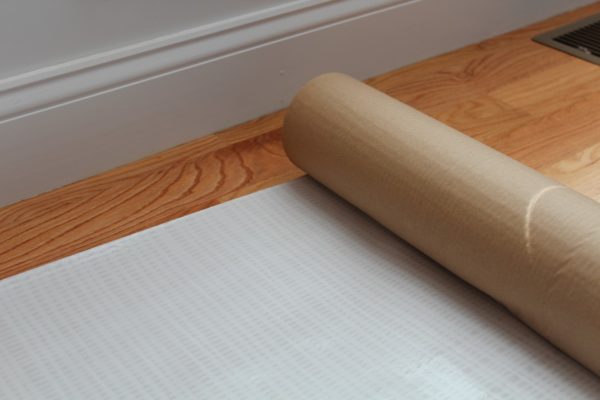

    • Floor Protection
    • Other Applications where tear resistance and barrier is required.

Additional information

Standard Sizes

24" X 600' (1200 sq. ft.), 36" X 600' (1800 sq. ft.), 48" X 600' (2400 sq. ft.), 60" X 600' (3000 sq. ft.), 72" X 600' (3600 sq. ft.), 96" X 600' (4800 sq. ft.)

Standard Size

SKU PRODUCT SIZE Rolls per Pallet Roll Weight (lbs) Pallet Weight (lbs) Core Specification Default Wind Direction Lead Time
SW4024X600 24″ X 600′ (1200 sq. ft.) 64 25 1630 2″ ID Core Poly Side OUT 8 Business Days
SW4036X600 36″ X 600′ (1800 sq. ft.) 32 38 1246 2″ ID Core Poly Side OUT 8 Business Days
SW4048X600 48″ X 600′ (2400 sq. ft.) 32 50 1630 2″ ID Core Poly Side OUT 8 Business Days
SW4060X600 60″ X 600′ (3000 sq. ft.) 30 63 1920 2″ ID Core Poly Side OUT 8 Business Days
SW4072X600 72″ X 600′ (3600 sq. ft.) 30 75 2280 2″ ID Core Poly Side OUT 8 Business Days
SW4096X600 96″ X 600′ (4800 sq. ft.) 25 101 2550 3″ ID Core Poly Side OUT 8 Business Days
